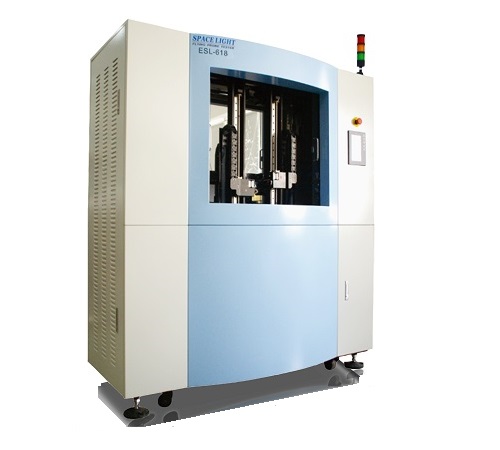

Model: ESL-618
Board Handling
Dimension
L1660 x W720 x H1810 mm
Weight
800 kg
Test Area
Max. 21.5"x24.5"(546x622mm) Min. 20mm x 40mm
Board Thickness
0.2mm~8mm
Smallest Pad
75μm
Smallest Pitch
120μm
Resolution
1μm
Repeatable Accuracy
±2μm
Soft Touch Probe
5g to 15g
Electronics
Test Voltage
30V to 300V
Test Current
10mA to 200mA
Isolation Test
5MΩ to 250MΩ
Continuity Test
3Ω to 280Ω
Power Supply
AC220V 50Hz
